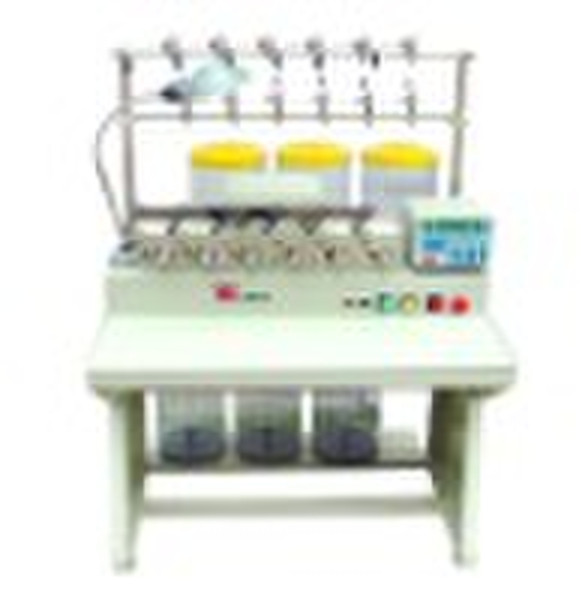

Frontal winding machine,6spindles,with table and l

MCSH22-60Frontal winding machine,6spindles,with table and light Main features:1. adoption of the latest controller2. with self test, including the setting error, speeding tracking and speed calibration. Can esay raise and reduce the spindle speed3. can adjust climb time from low speed time to highest speed.time of the spindle motorSet data:Can set Starting point, wire size, winding width, number of turns, climbing turns, stop turns, winding speed,slow winding speed,winding direction, stopping at both ends, automatic reset, automatic start (auto jump to next slot and winding)MCSH226-30MCSH22-60NO.of spindle66 Wire size0.05-0.35mm0.05-0.45mmWinding width60mm60mmMax.speed0-4200turns/minute0-6000turns/minutePower source110V/220V50Hz220V50HzMain axis motorAC1/2three phase motor+1HPtransducerAC1/2three phase motor+1HPtransducerWinding motorStepping motorStepping motorMachine size920X560X1020mm920X710X1350mmPacking size430x620x1010mm960x710x980mmNet weight65kg120kgGross weight85kg150kg Guangdong Zhongshan Shili Wire Winder Device Co., Ltd. was founded in 1988.We have developed and expanded greatly during these years and now we are one of those largest-scaled professional manufacturers in the specific field across China. Our products are not only sold to various places of the country but also exported to Hong Kong, Macao and Southeast Asia, North America South America Eastern Europe Africa Oceania Mid East Eastern Asia Western Europe,with high reputation in those places.Our products mainly include electronic mechanical equipment such as computerized wire winders (flat and circular winding), El piece inserting machines, electric stripping machines, electronic wire cutting machines and tin immersing furnace. Besides, we can also design and modify products upon customers' requirements.
