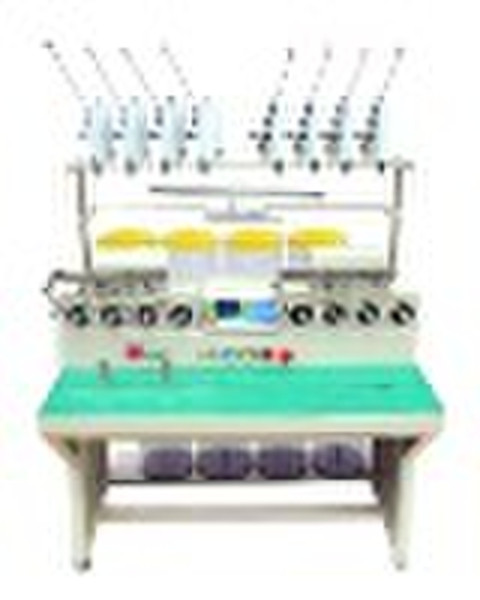

Frontal winding machine,with table,8spindles,4spin

Frontal winding machinewith table 8spindles,4spindles for small wire,4spindles for big wire Main features: MCSH26-80-winding machine is conforming to the transformer industry, high-volume requirements, winding thick wire and thin wire in one machine, on working: only move the shield save operation time than the original machine. One machine two-use, time-saving machine production effects. (This machine can according to user requirements into AA or BB) (A:thin wire,B:thick wire) 1. adoption LCD displays of the latest controller 2. with self test, including the setting error, speeding tracking and speed calibration. Can esay raise and reduce the spindle speed 3. can adjust climb time from low speed time to highest speed.time of the spindle motor MCSH26-80ABMCSH26-80AA MCSH26-80BB NO.of spindle 888Wire size A0.04-0.2mm B0.1-0.6mm0.04-0.2mm0.1-0.6mmWinding width 60mm60mm60mmMax.speed A0-8000turns/minuteB0-4200turns/minute0-8000turns/minute0-4200turns/minutePower source 220V50Hz220V50Hz220V50HzMain axis motor AC1/2three phase motor+1HPtransducerAC1/2three phase motor+1HPtransducerAC1/2three phase motor+1HPtransducerWinding motor Stepping motorStepping motorStepping motorMachine size 1050X30X1600mm1050X30X1600mm1050X30X1600mmPacking size 1150x930x1100mm1150x930x1100mm1150x930x1100mmNet weight 198kg198kg198kgGross weight 250kg250kg250kg
