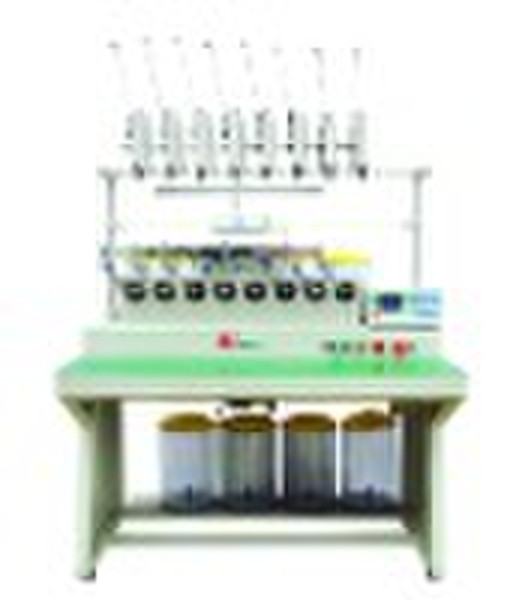

Frontal winding machine,with table,8spindles,speed

MCSH28-80Frontal winding machine with table, 8spindles,speed up to 10000turns/min Features:MCSH28-80 high speed winding machine with high-efficiency to transformer industry ,with low noise,winding wire stable.1. adoption LCD displays of the latest controller2. with self test, including the setting error, speeding tracking and speed calibration. Can esay raise and reduce the spindle speed3. can adjust climb time from low speed time to highest speed.time of the spindle motor4. winding more layer functionA.over Groove distance setting B.reset type selected C.slot number setting D.each spindle speed setting E.spindle positioning optional F.connect after the arrange line choice G.forward and reverse count H.temporarily brake select Scope appliesTo transformers, relays, power converters, instrument coils, and other electronic coilTechnical parameters MCSH28-80NO.of spindle8Wire size0.03-0.3MMWinding width60mmMax.speed0-10000turns/minPower source220V50HzMain axis motorAC1/2three phase motor+1HPtransducerWinding motorStepping motorMachine size1080X830X1600mmPacking size1130x860x1000mmNet weight167kgGross weight227kg
